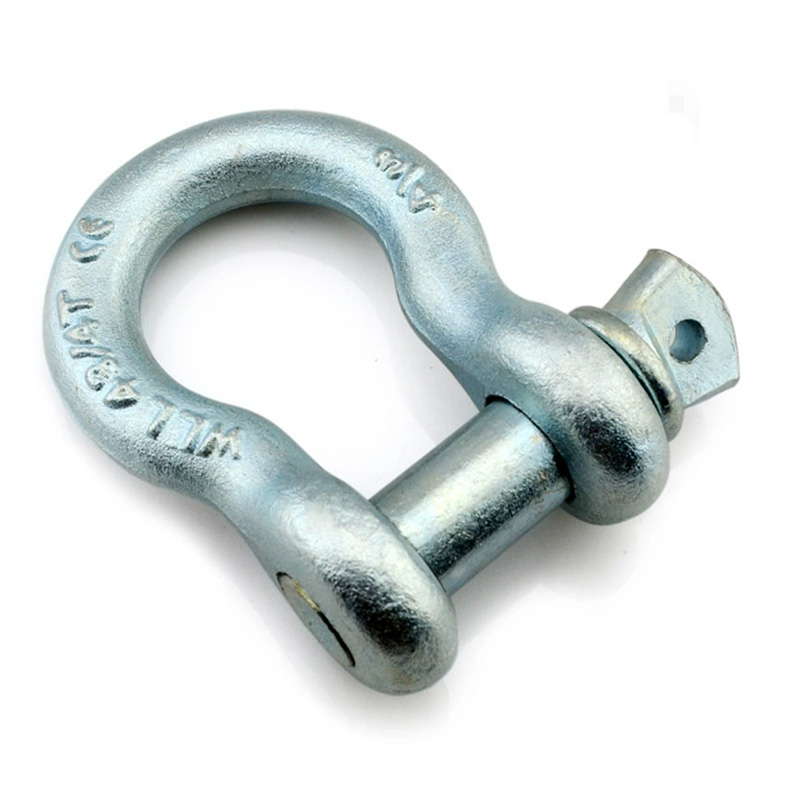

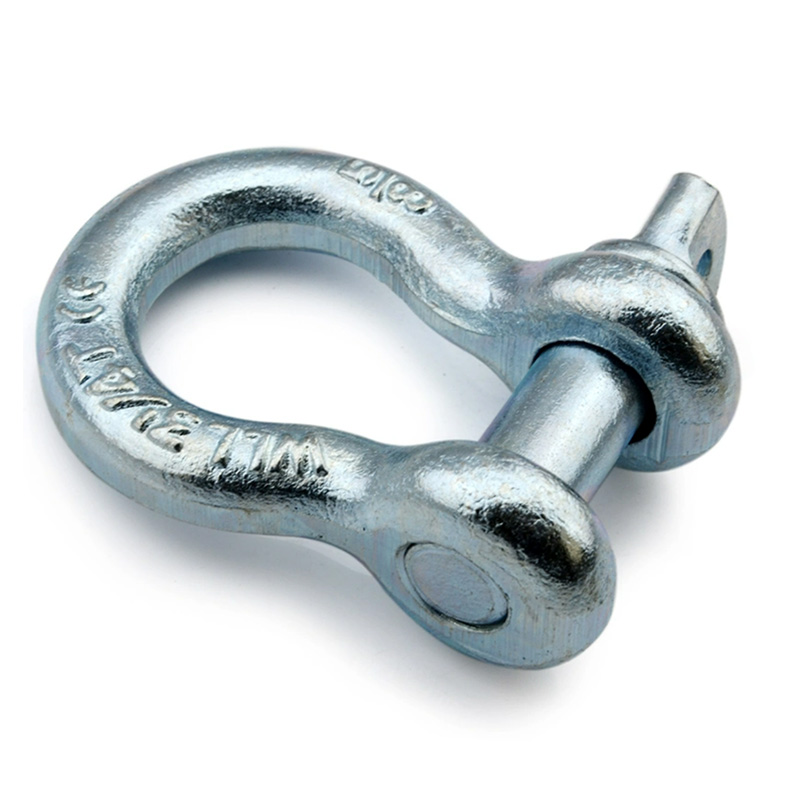

G209 US Type Bow Shackle With Screw
Specification:

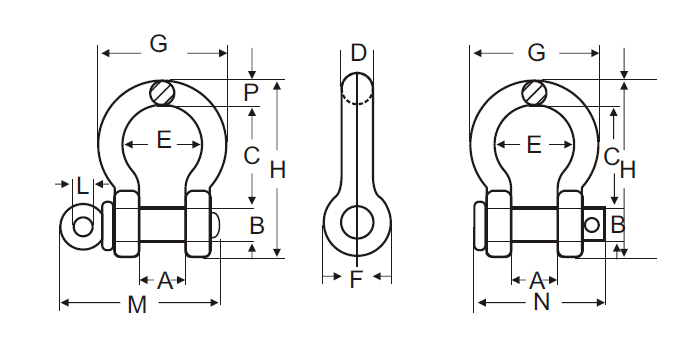

| Nominal Size (in.) | Working Load limit (tons) | Dimensions (in.) | Weight Each (lbs) | |||||||||||
| A | B | C | D | E | F | G | H | L | M | N | P | |||
| 3/16 | 0.33 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | 0.98 | 1.47 | 0.16 | 1.12 | - | 0.19 | 0.05 |
| 1/4 | 0.5 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.28 | 1.84 | 0.19 | 1.38 | 1.34 | 0.25 | 0.12 |
| 5/16 | 0.75 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 1.47 | 2.09 | 0.22 | 1.66 | 1.59 | 0.31 | 0.19 |
| 3/8 | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 1.78 | 2.49 | 0.25 | 2.03 | 1.86 | 0.38 | 0.31 |
| 7/16 | 1.5 | 0.75 | 0.50 | 1.69 | 0.44 | 1.16 | 1.06 | 2.03 | 2.91 | 0.31 | 2.38 | 2.13 | 0.44 | 0.38 |
| 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.50 | 1.31 | 1.19 | 2.31 | 3.28 | 0.38 | 2.69 | 2.38 | 0.50 | 0.63 |
| 5/8 | 3.25 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.50 | 2.94 | 4.19 | 0.44 | 3.34 | 2.91 | 0.69 | 1.38 |
| 3/4 | 4.75 | 1.25 | 0.88 | 2.81 | 0.75 | 2.00 | 1.81 | 3.50 | 4.97 | 0.50 | 3.97 | 3.44 | 0.81 | 2.25 |
| 7/8 | 6.5 | 1.44 | 1.00 | 3.31 | 0.88 | 2.28 | 2.09 | 4.03 | 5.83 | 0.50 | 4.50 | 3.81 | 0.97 | 3.38 |
| 1 | 8.5 | 1.69 | 1.13 | 3.75 | 1.00 | 2.69 | 2.38 | 4.69 | 6.56 | 0.56 | 5.07 | 4.53 | 1.06 | 5.32 |
| 1 1/8 | 9.5 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.16 | 7.47 | 0.63 | 5.59 | 5.13 | 1.25 | 6.81 |
| 1 1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3.00 | 5.75 | 8.25 | 0.69 | 6.16 | 5.50 | 1.38 | 9.50 |
| 1 3/8 | 13.5 | 2.25 | 1.50 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | 0.75 | 6.84 | 6.13 | 1.50 | 13.25 |
| 1 1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10.00 | 0.81 | 7.35 | 6.50 | 1.62 | 17.20 |
| 1 3/4 | 25 | 2.88 | 2.00 | 7.00 | 1.84 | 5.00 | 4.19 | 8.86 | 12.34 | 1.00 | 9.08 | 7.75 | 2.25 | 30.38 |
| 2 | 35 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 8.86 | 12.34 | 1.00 | 9.08 | 7.75 | 2.25 | 30.38 |
| 2 1/2 | 55 | 4.13 | 2.75 | 10.50 | 2.71 | 7.25 | 5.69 | 8.86 | 12.34 | 1.00 | 9.08 | 7.75 | 2.25 | 30.38 |
